Open Drag Chain bridge type 7x7 10x10 10x15 10x20 15x20 18x18 L1m Cable Carrier with Ends for CNC 3D printer Voron Trident 2.4

Please note: 5x5 7x7 7x15 10x10 is no open
10x10 can usually be replaced with 10x11 open.

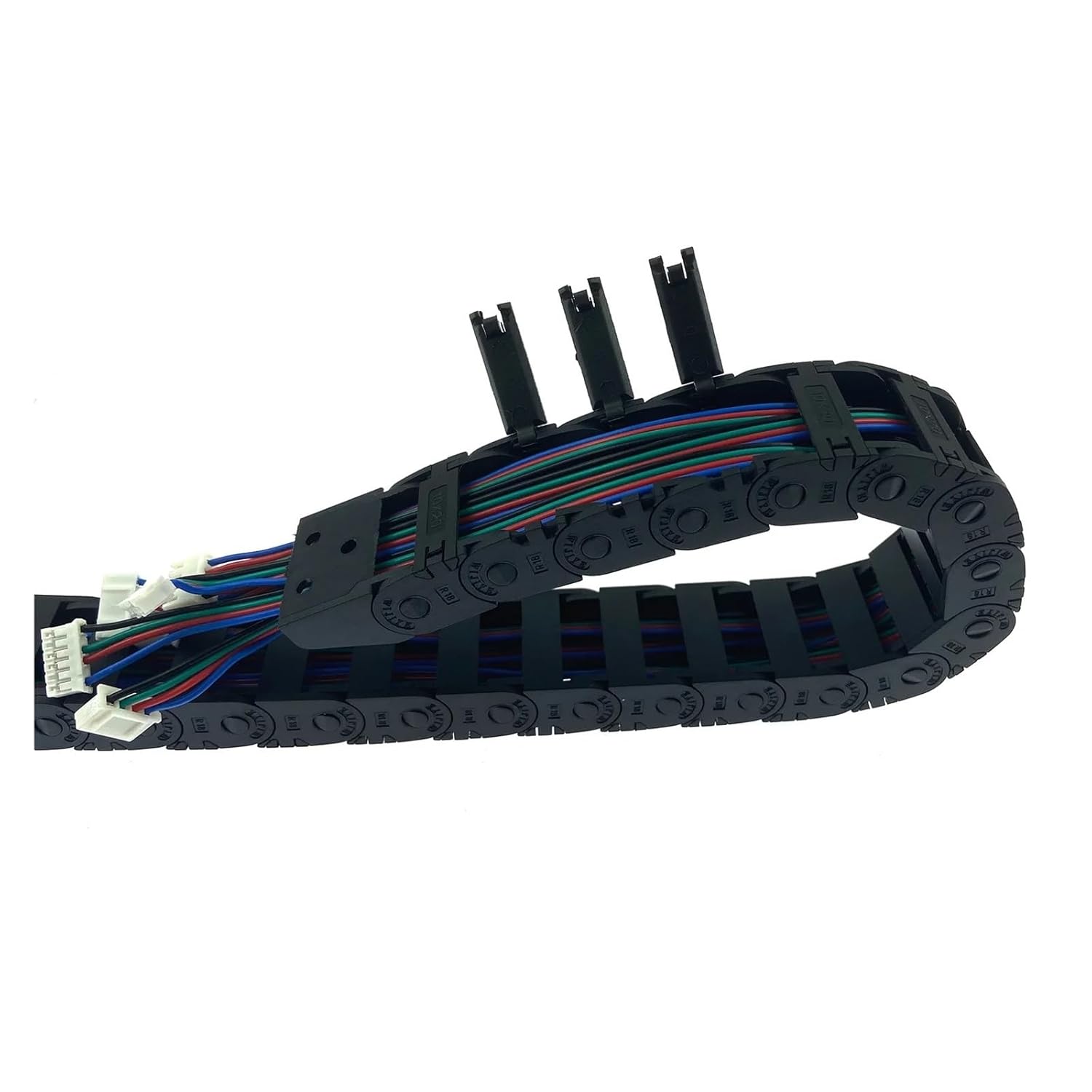

Using cable carrier to make your CNC machine more tidy and effective!
*The drag chain can be spliced arbitrarily, each unit link can be split or spliced, "R" represents the bending radius, please buy it according to your own needs, usually: the larger the bending radius, the better the line protection, but the space required is also Bigger.

Introduction:

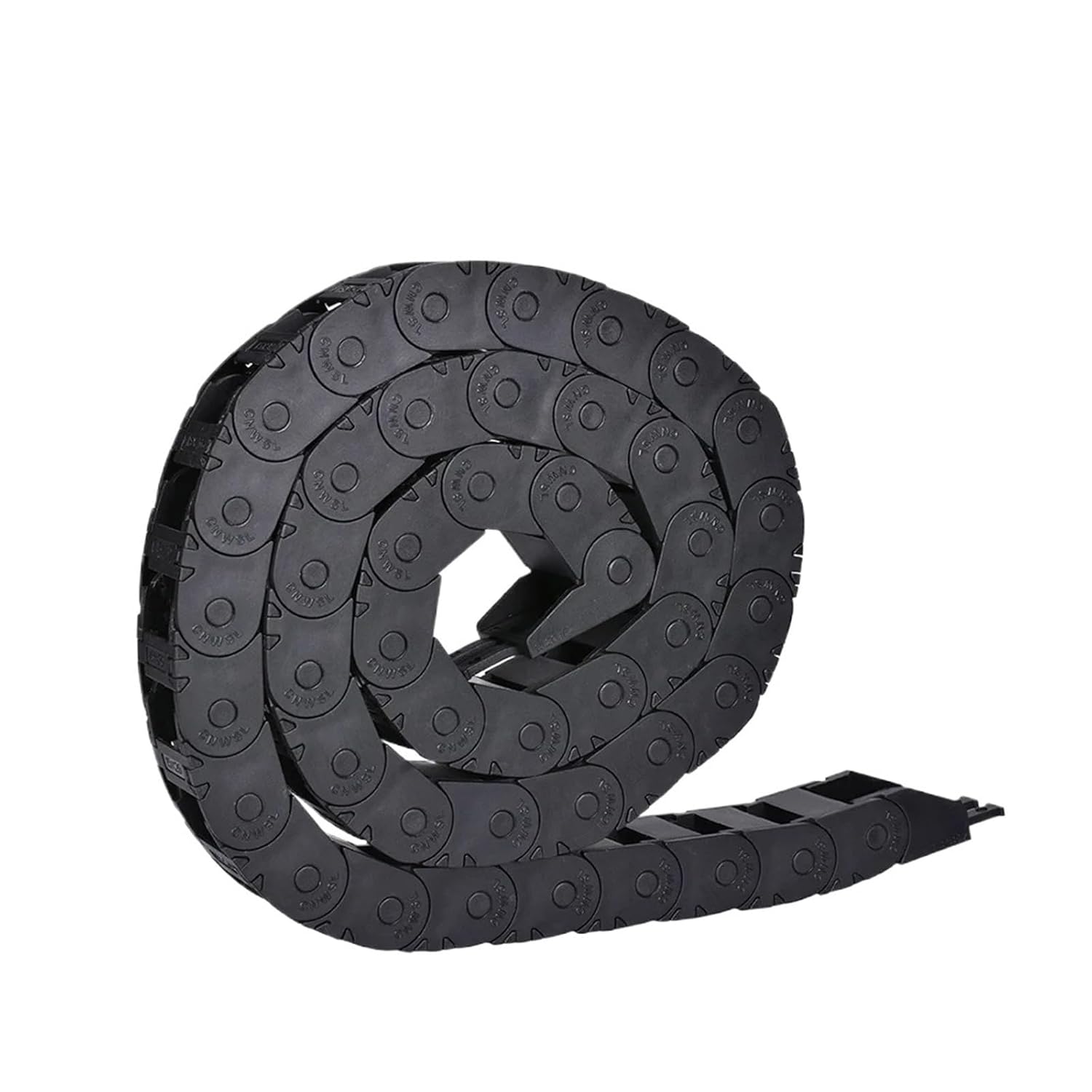

The drag chain looks like a tank chain and consists of many unit links, which can rotate freely between the links.

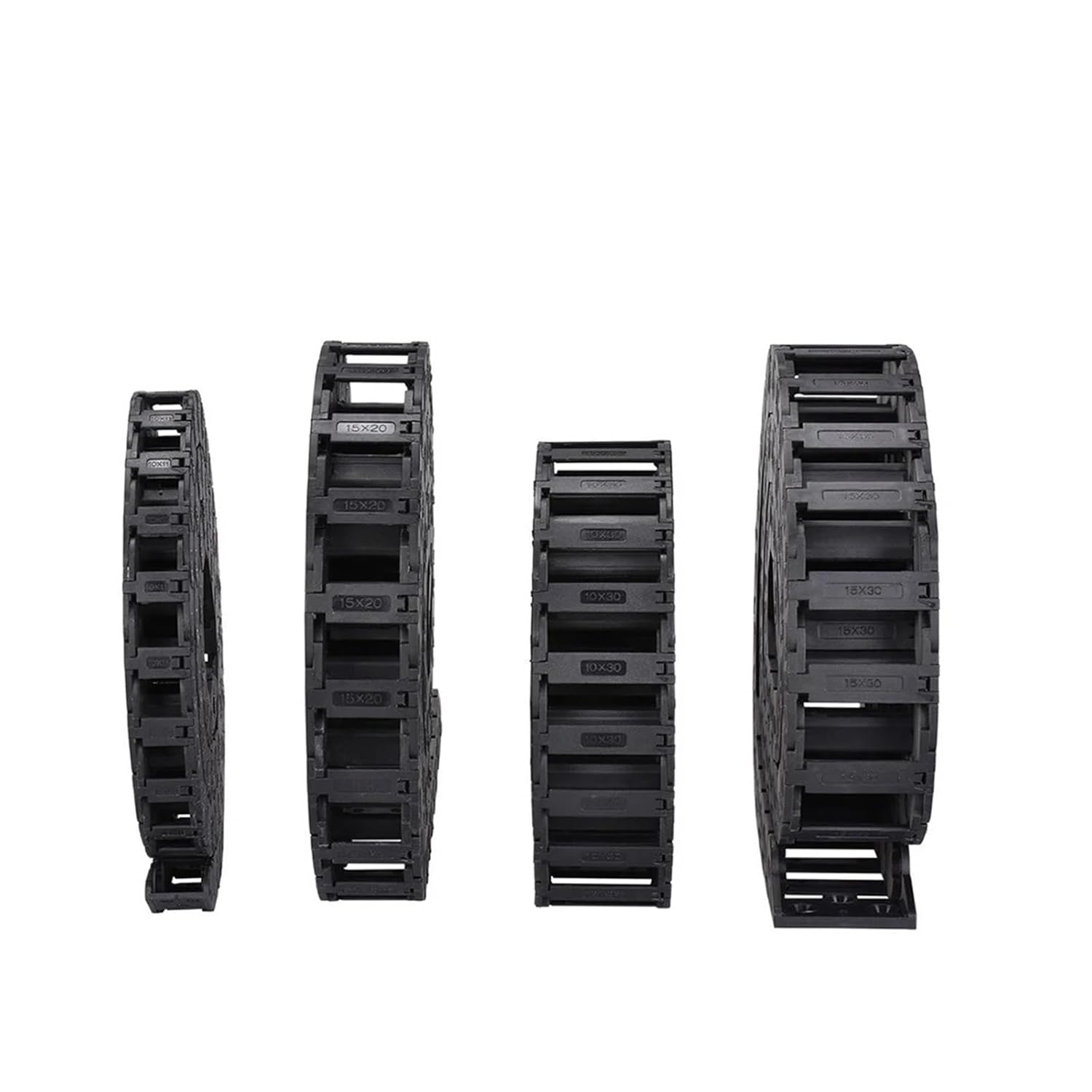

The inner height, outer height, and pitch of the same series of drag chains are the same, and the inner height and bending radius R of the drag chains can be different.

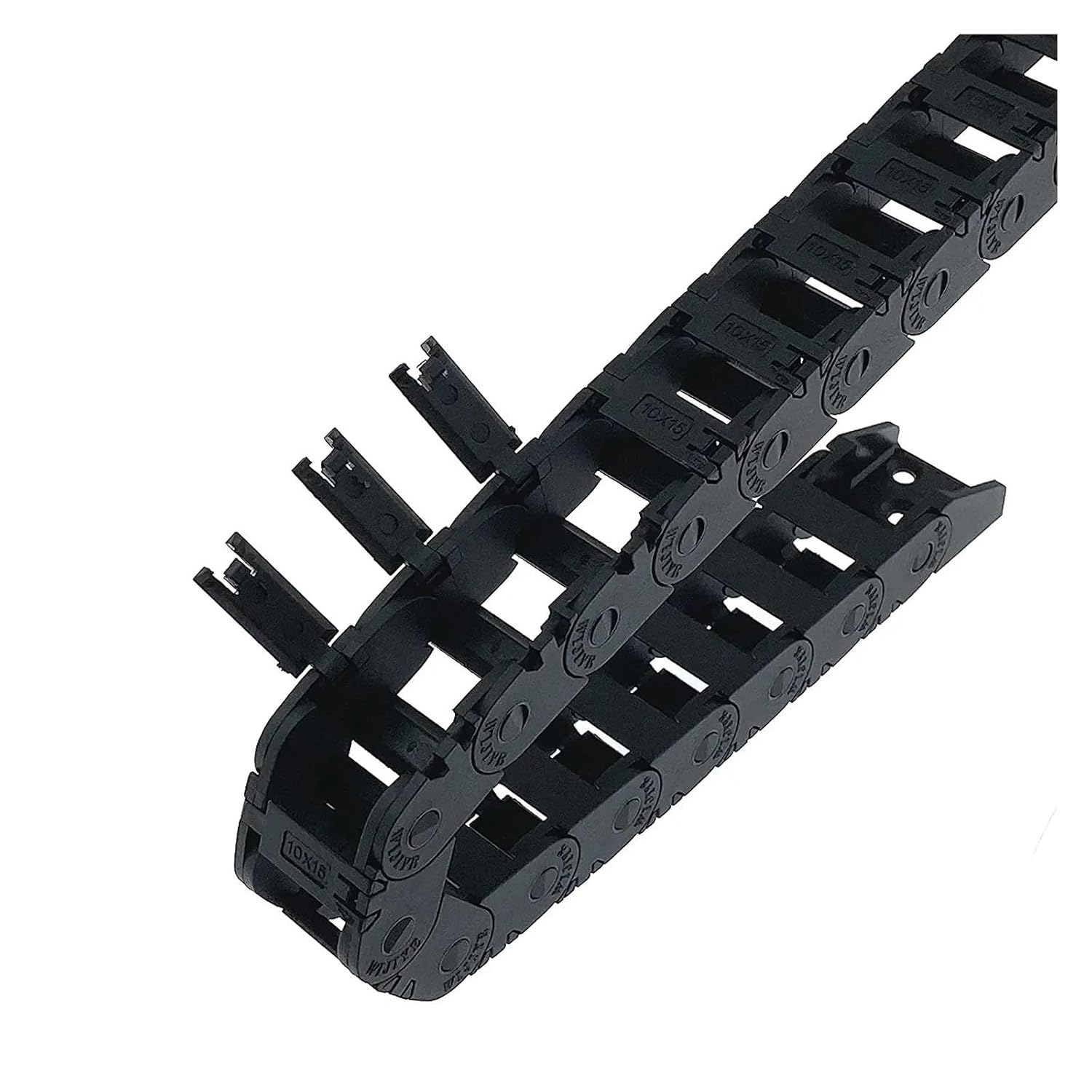

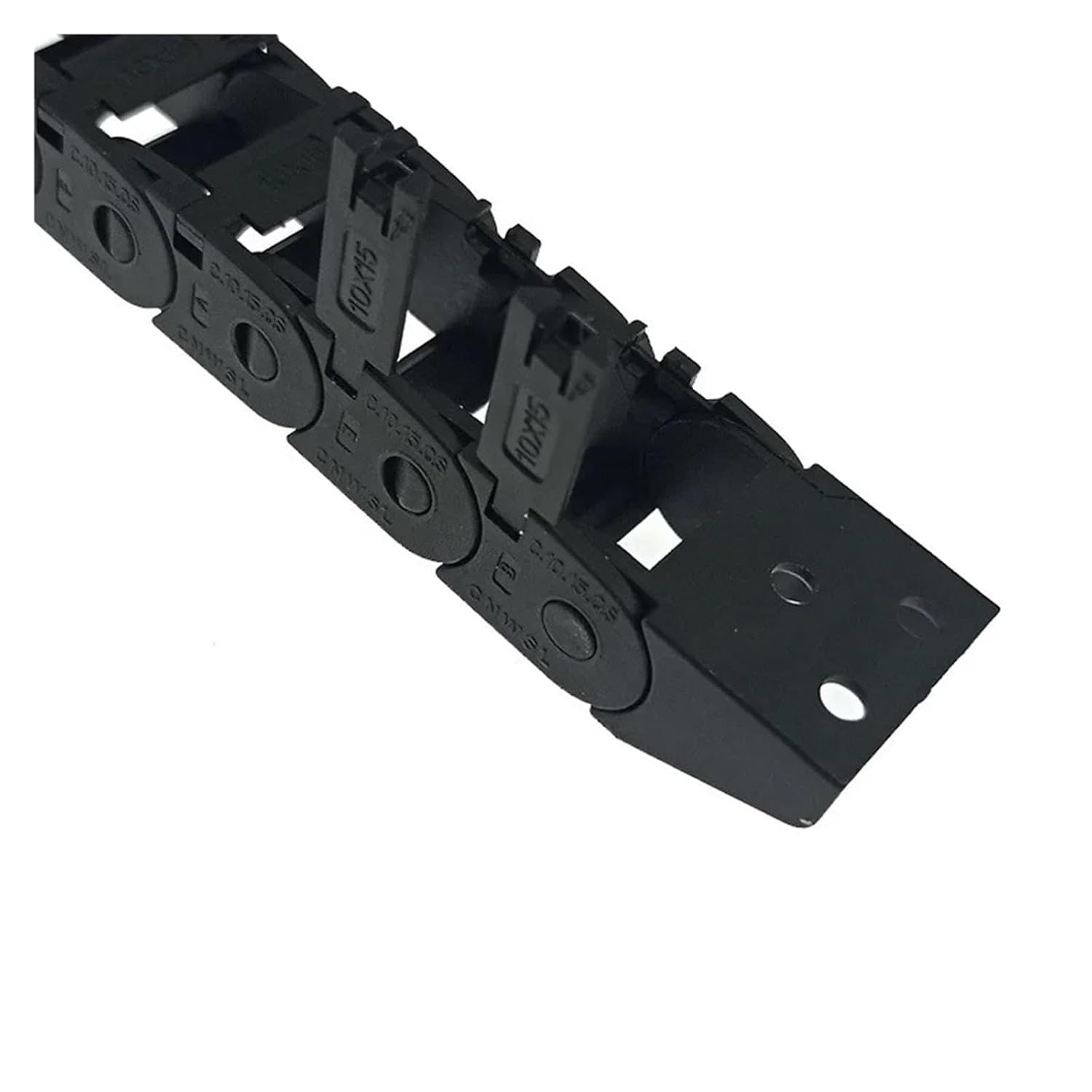

The unit chain link is composed of left and right chain plates and upper and lower cover plates. Each link of the drag chain can be opened, which is convenient for assembly and disassembly. Separator can be provided to separate the space in the chain as required.
Basic parameters of drag chain
Material & Construction
Reinforced nylon with high pressure and tensile load good toughness high elasticity wear resistance flame retardant It has stable performance at high and low temperatures and can be used outdoors.
Resistance:It is resistant to oil and salt and has certain acid and alkali resistance.
Running speed and acceleration:the highest speed can reach 5 meters per second, and the highest acceleration can reach 5 meters per second (the specific speed and acceleration depend on the operating conditions).
Operating life:under normal overhead use, up to 5 million reciprocating movements (the specific life depends on the operating conditions).
Selection principle of plastic drag chain
Specification & Situation3 elements
1 Inner height select the thickest one of the builtin cables oil pipes air pipes, water pipes, etc. as the reference height, plus at least 10% of the
